Vacuum chamber (50 l) SM-136-01 - SKB-077

Vacuum Industrial Equipment

Vacuum chamber (50 l) SM-136-01

29400 RUB

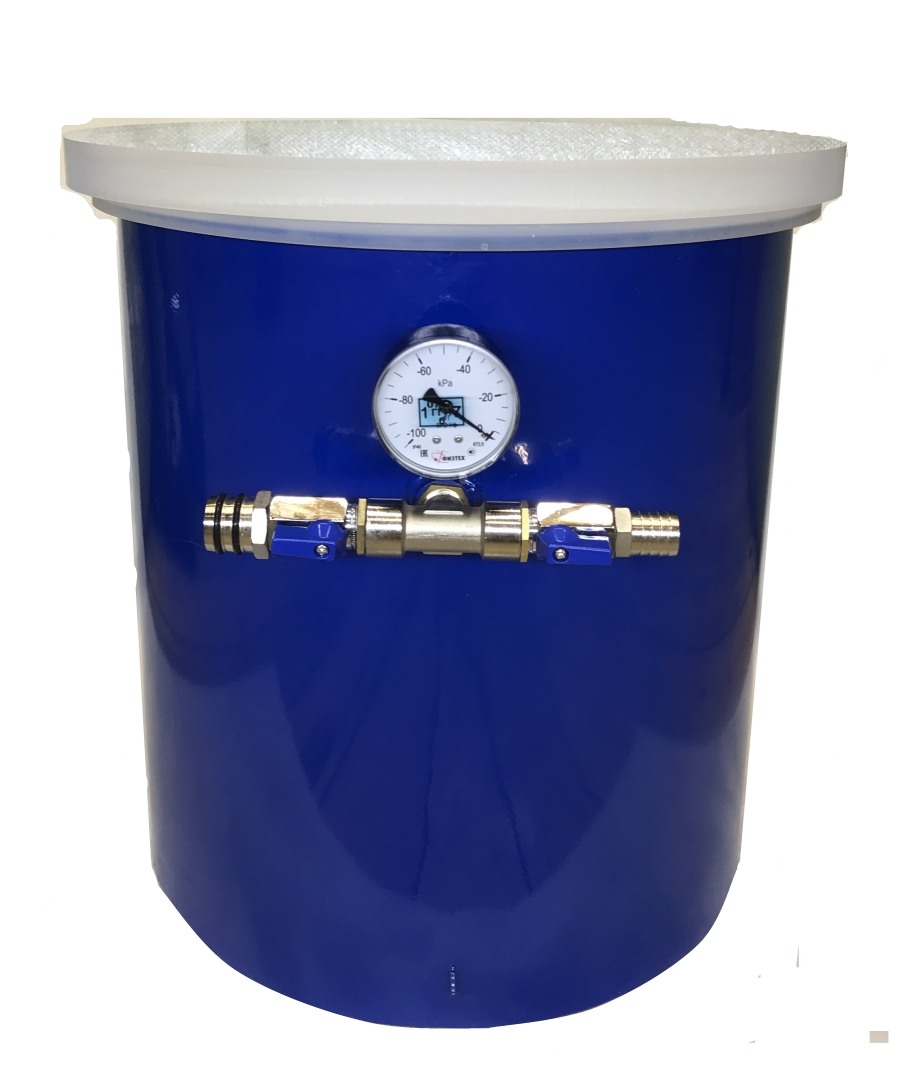

The vacuum chamber SM-136-01 (other names - vacuum degasser, vacuum tank for degassing) is designed for degassing silicone and resin before pouring into the mold. The vacuum chamber eliminates air bubbles in the compound, which affects the quality of the cast parts.
Add to cart

The vacuum chamber SM-136-01 (other names — vacuum degasser, vacuum tank for degassing) is designed for degassing silicone and resin before pouring into the mold. The vacuum chamber eliminates air bubbles in the compound, which affects the quality of the cast parts. The vacuum chamber SM-136-01 is designed for degassing large volumes of compound. It is perfect for those who produce marble products, pour transparent floors, and manufacture large-sized molds from silicone and polyurethane for the production of sculptures.

Features:

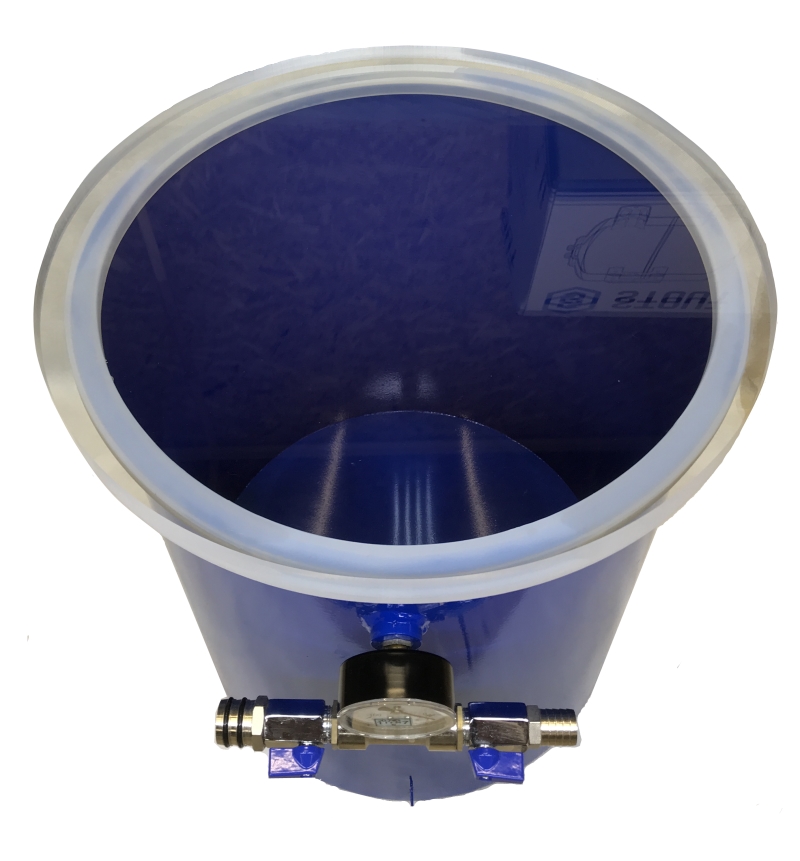

  • The lid is made of organic glass (acrylic glass), which allows you to observe the process inside the chamber;
  • The vacuum gauge and tap are separated, which eliminates the beating of the needle when equalizing pressure and allows more accurate control of the residual pressure inside the chamber;
  • The vacuum chamber is designed for use with plastic drums (35 l barrel).

Specifications:

<ул>

  • Materials: steel, acrylic;
  • Volume, l: 50;
  • Maximum volume of degassing compound, l: 25–30;
  • Outer dimensions, mm: 455×455;
  • Internal overall dimensions, mm: 385×425;
  • Connection dimensions: fitting for a hose with an internal diameter of 16 mm. It is possible to equip with quick-release fittings;
  • Retention of residual pressure, hours not less than: 12;
  • Weight: 20.5 kg.

Completeness:

  • Vacuum chamber — 1 pcs;
  • Operation manual — 1 pcs.

Рекомендации:

  • To speed up the process of degassing the compound in this vacuum chamber, it is necessary to purchase one of the most efficient pumps; we recommend using the industrial vacuum pump Value VSV-020-220. These pumps are highly efficient and allow degassing of large volumes of liquids within 5–10 minutes;
  • Before working with a vacuum chamber, we recommend that you watch the videos on this page and read the article with instructions for its use.

1 year warranty.

Manufacturer: Russia, SKB-077.

Photo:
